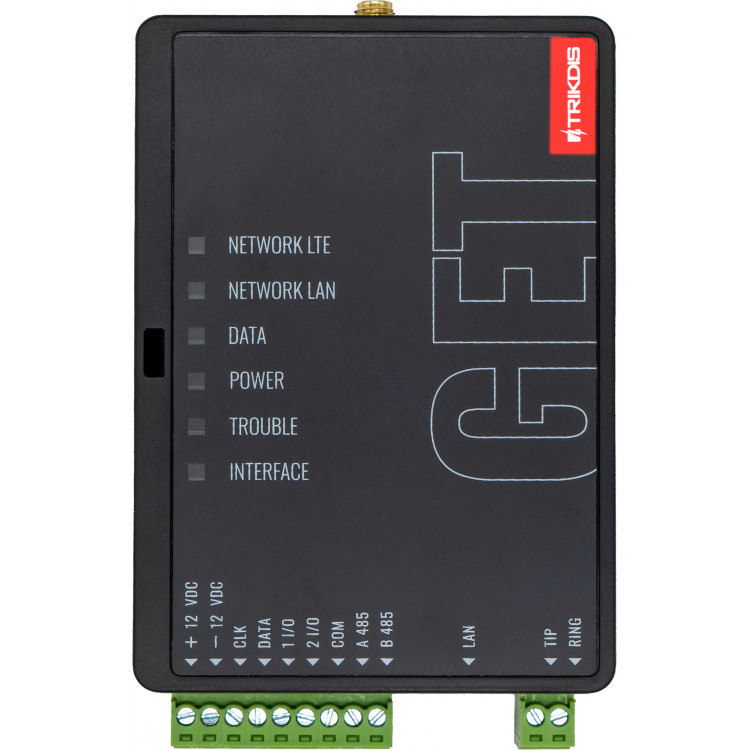

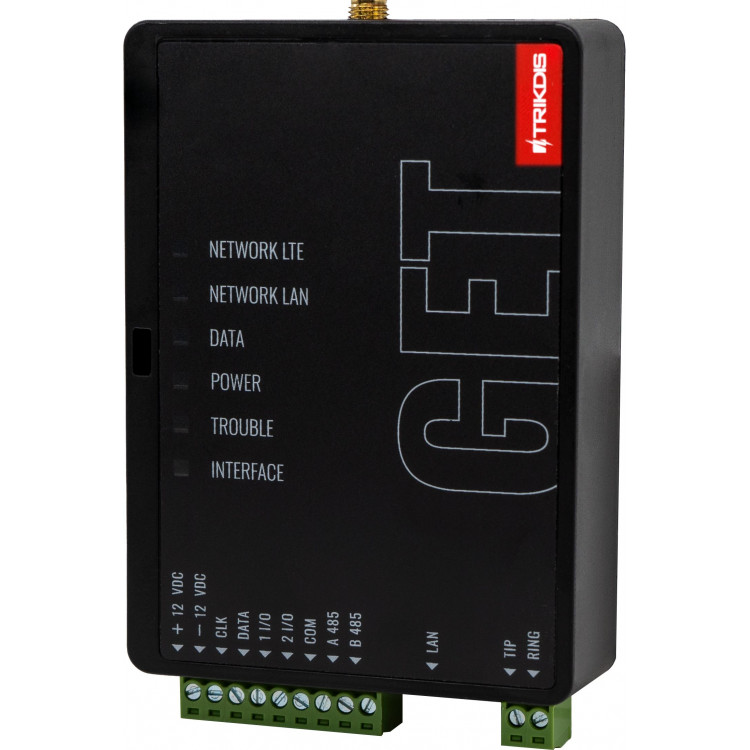

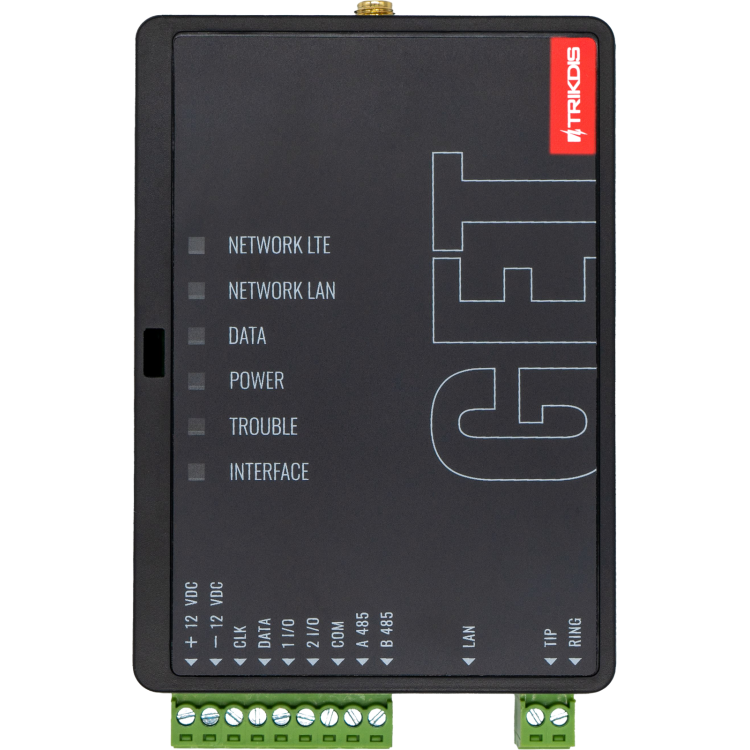

Trikdis GET Ethernet + 4G communicatiemodule

The Trikdis GET Ethernet + 4G smart communicator is the top-tier device from the manufacturer, combining the capabilities of the E16, E16T, G16, and G16T communicators.

From the "E" series, it inherits Ethernet functionality, and from the "G" series, it features "GSM" 4G mobile network connectivity. It can be directly connected to alarm systems from manufacturers like Paradox, DSC, and others using the data bus (DATA BUS) or serial port (SERIAL PORT) connection. For unsupported alarm panels, just like the communicators with the "T" suffix, GET allows the traditional landline (TIP RING) connection.

It transmits data to the central monitoring station and the user via wired internet connection (LAN) and/or 4G mobile network. The two connection options can be used redundantly, ensuring that if the primary connection (typically ethernet) is lost, it immediately switches to the backup connection.

Like all smart Trikdis devices, the user application here is Protegus 2 Mobile and Web app. The alarm system, through the communicator, allows the owner to remotely arm or disarm it from the mobile app and control or monitor additional connected devices.

Main features

• Redundant Cellular and IP-based communicator
• Compatible with popular security control panels on data bus or serial port from major manufacturers and any others with landline (TIP RING) terminal
• When Protegus 2 service is enabled, events are first delivered to CMS, and only then are sent to app users (or option to parallel report).

Notifies users

• Users are notified about events and can control the system via the free Protegus 2 Android / iPhone and web app
• “Push” and special sound notifications informing about events.
• Remote system Arm/Disarm.

Controllable outputs

• 2 double I/O terminals that can be set either as input (IN) or controllable output (OUT) terminals.
• Outputs controlled by the Protegus 2 app.
• Add additional inputs and controllable outputs up to 32 total with iO8 expander via the RS485 port
• Remote control of connected devices (lights, gates, ventilation systems, heating, sprinklers, etc.).

Quick setup

• Settings can be saved to file and quickly written to other communicators.
• Two access levels for configuring the device for CMS administrator and for the installer.
• Quick and easy configuration and firmware updates via USB or remotely after initial setup with Trikdis programming software.
• USB C for programming (replacing the USB mini which was used before)
• Remote configuration and firmware updates.

Central monitoring station

• Sends events to Trikdis software or hardware receivers that work with any monitoring software.
• Can send event messages to universal SIA DC-09 and SUR-GUARD TL150 receivers
• The module transmits the messages of the control panel to the monitoring station in Contact ID code format
• Connection supervision by polling to IP receiver every 30 seconds (or by user-defined period).
• Backup channel, that will be used if connection with the primary channel is lost.
• With parallel communication channels events can be sent to two receivers at the same time.

U heeft een kabel nodig voor de aansluiting

Als de E16, G16, GT, GT+, GET communicatiemodule wordt aangesloten op een Paradox alarmcentrale, hebt u ook een CRP2-kabel voor de seriële poort nodig.

Als u aansluit op een Texecom alarmcentrale, kies dan de CRP4-kabel.

Aansluiting op databus of seriële poort, wat betekent dit?

In this case, the communicator is practically taught to understand the alarm panel\\\'s own language (one-way communication). Just like operators or other peripheral devices, the communicator sees events and will transmit the appropriate information according to the settings.

Directe bediening

In the case of directly controllable panels, the communicator not only receives notifications from the panel but also a part of the functions available on the keypad becomes accessible (bidirectional communication).

• Activation / deactivation of the entire system or partition using a user code
• Detection of zone statuses
• Zone bypass
• Automatic mapping of partitions and zones
