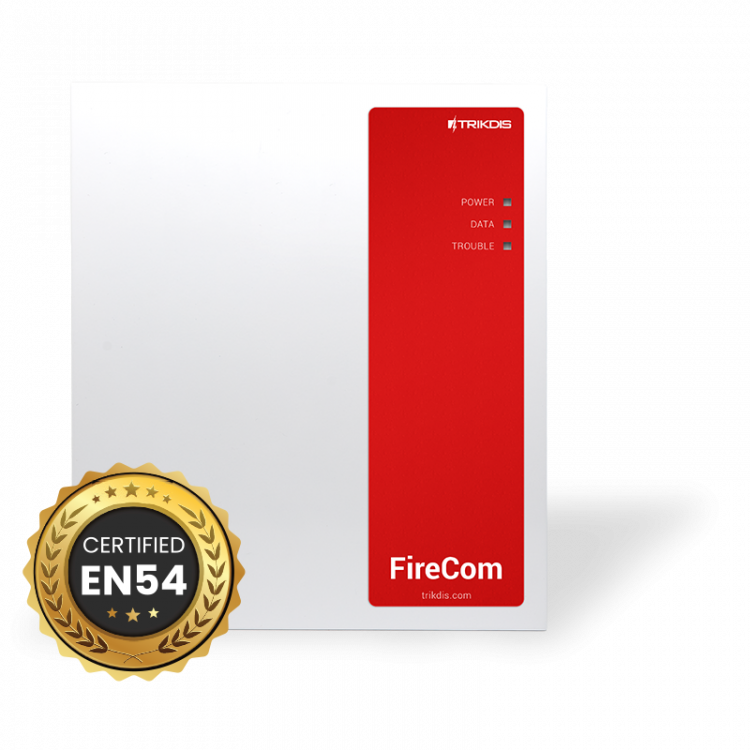

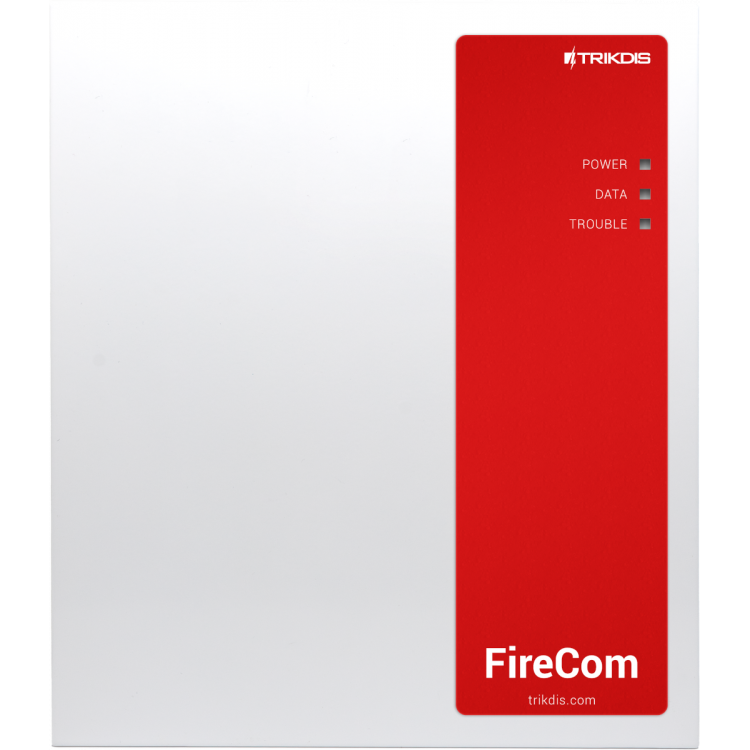

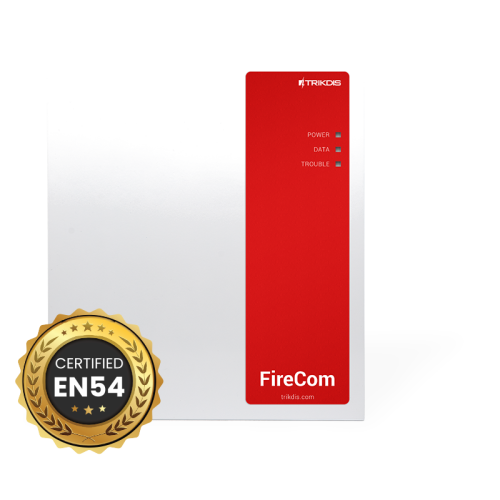

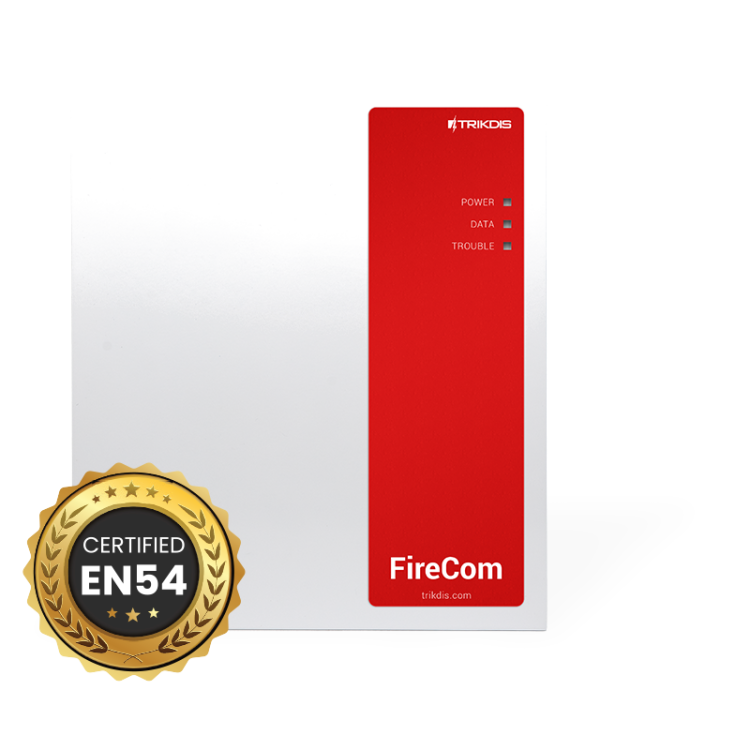

Trikdis FireCom Ethernet + 4G brandcommunicatiemodule

The Trikdis FireCom is an innovative, flexible, and versatile fire communicator. This advanced device ensures fast, reliable, and secure event transmission via Ethernet and/or a 4G mobile network using two SIM cards. FireCom is a cost-effective and efficient solution that guarantees uninterrupted communication and operation. With its EN54 certification, the device fully complies with the strictest European fire safety regulations.

Main Features

Professional event reporting to monitoring centers

• Reliable data transmission via Ethernet or 4G mobile network, with support for two SIM cards
• Automatic channel switching in case of network failure
• Redundant dual-path communication with flexible configuration options
• Event transmission in Contact ID or SIA format
• Reporting to two independent monitoring stations, each with its own backup receiver

User-friendly notification system

• Notification of up to 8 preconfigured phone numbers
• Event alerts via SMS and push notifications
• Special sound and visual alerts in the Protegus 2 app
• Remote temperature monitoring with alerts when threshold is exceeded

Remote control of outputs

• Interactive control via the Protegus 2 mobile app
• Send commands via SMS or phone call
• Automated operation based on predefined rules

Quick setup and easy installation

• Plug & Play configuration, minimal installation time
• Configuration via USB cable or remotely using TrikdisConfig software
• Support for automatic remote firmware updates
• Two access levels: installer and administrator

Flexible inputs and outputs

• 3 high-power relay outputs (1A, 30V DC)
• Special “FLOOP” input for connecting two-wire fire detectors
• 10 configurable I/O terminals, usable as inputs (IN) or outputs (OUT)
• Available input types: NC, NO, EOL, EOL-T, ATZ, ATZ-T
• Expandable to 32 inputs and 16 outputs using iO modules
• RS485 bus support for iO expansion modules
